Upplýsingar um vöru

Vörunúmer: EDM01000104

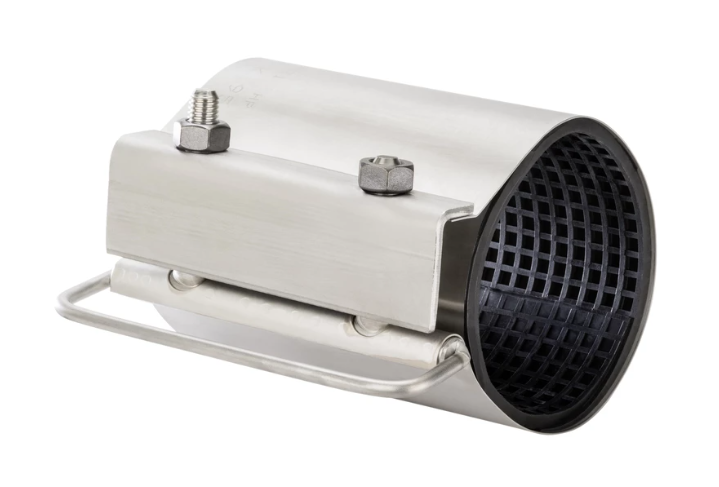

Viðgerðarbaula Hawle D75-83/200 PN16
Type “M 104”
Þyngd: 2 kg

Pipe diameters 54-430, length 150-380

Eiginleikar

Quick assembly with H-Nut dispenser which prevents loss of nuts into the dirty trench.


  • For steel, ductile iron, asbestos cement and PVC-pipes
  • The clamp with the self-centring lug system
  • Fully encompassing gasket seals complete gaps and other pipe damage

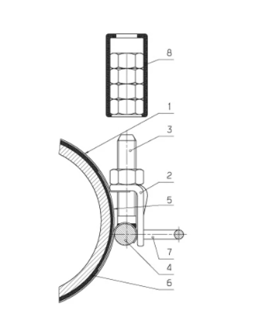

  • The bolts (3) are welded to the bolt bar (4). Squeezing the handle makes for easy assembly onto the pipe. The nuts are fed directly to the bolts from a special nut dispenser (8). This eases the positioning of the lugs and bolts and avoids the handling of loose parts.
  • Special versions such as larger diameters and other lengths on request
  • Tested with new pipes in delivery condition
    Ø 54 - Ø 190 PN 16
    Ø 190 - Ø 430 PN 10

Attention: NBR rubber required for gas application!


Eiginleikar
Nafn eiginleika Gildi eiginleika
Flokkur GF-Kúplingar og Viðgerðarklemmur
Gerð Viðgerðarklemmur
Þrýstingur (P) 16 Bar
Þrýstiþol (PN) 16 Bar
Stærð D 104 - 112 / 200
Þyngd 2 kg
