Vörur

Lagerstaða:

Til í birgðum

Upplýsingar um vöru

Vörunúmer: SR1074018

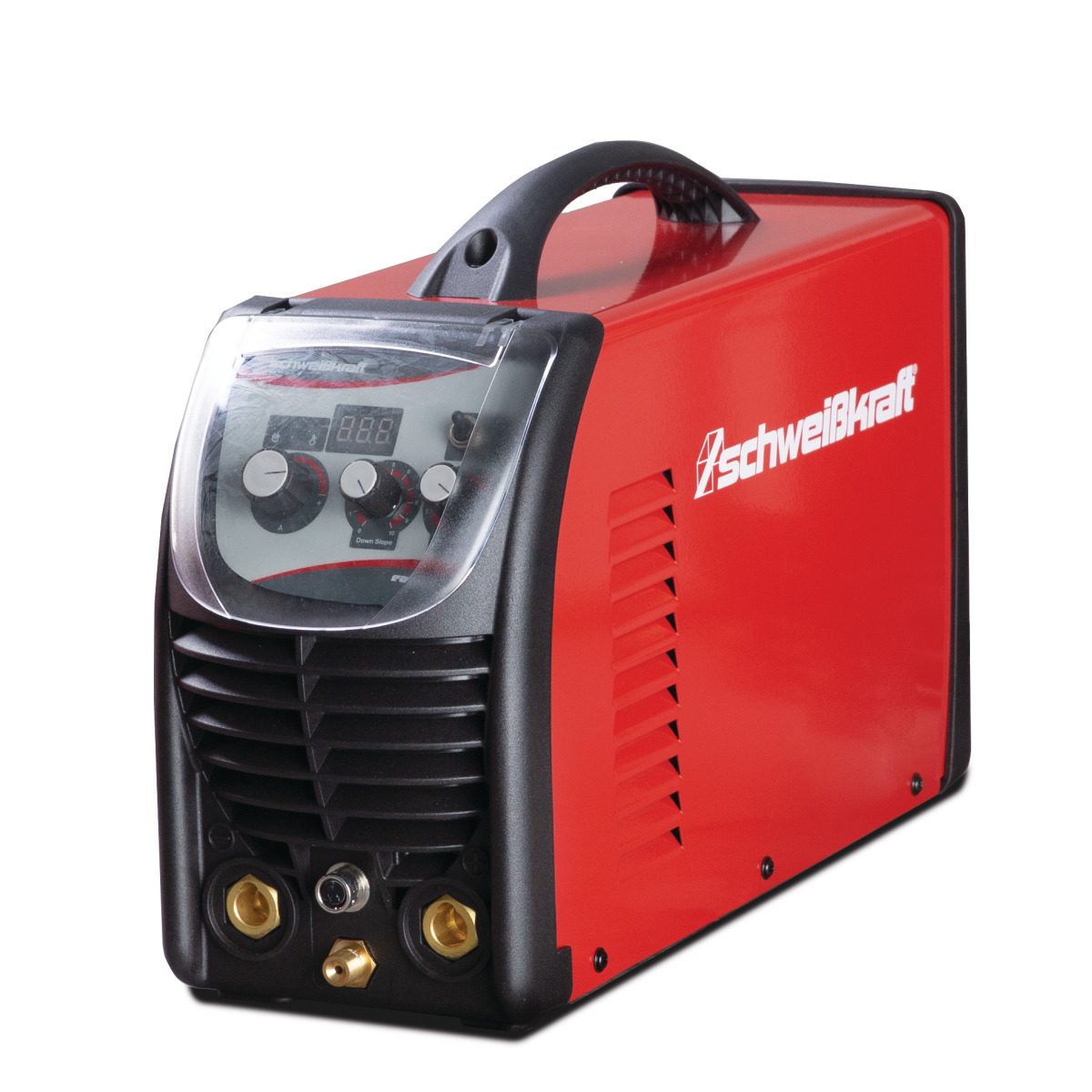

180 Amp alhliða suðuvél, Mig / Tig / pinna
Skemmtileg og einföld suðuvél þar sem einnig er hægt að umpóla og sjóða gaslaust með flux fylltum vír.

meðfylgjandi:
Mig suðubarki, pinnasuðukapall, jarðtenging og þrýstijafnari.
Sheet thicknesses
-TIG from approx. 0.5 mm
-Electrodes from approx. 2 mm

Device data
Ignition: high frequency
Torch cooling: gas

Dimensions and weights
Length approx.: 430 mm
Width/depth approx.: 150 mm
Height approx.: 280 mm
Weight approx.: 7.3 kg

Duty cycle
at Imax. 40°C TIG DC: 40 %
at Imax. 40°C electrode: 40 %
Current at 100% DC 40°C TIG DC: 100 A
Current at 100% DC 40°C electrode: 100 A

Electrical Data
Input current TIG DC: 28.8 A
Current consumption electrode DC: 42.6 A
Supply voltage: 230±10% V
Mains frequency: 50/60 Hz

Electrode
Weldable electrodes: 1.6 4.0 mm

Power consumption
TIG DC: 3.9 kVA
Electrode: 5.9 kVA

Setting range
TIG DC: 10 180 A
Electrode: 10 180 A
