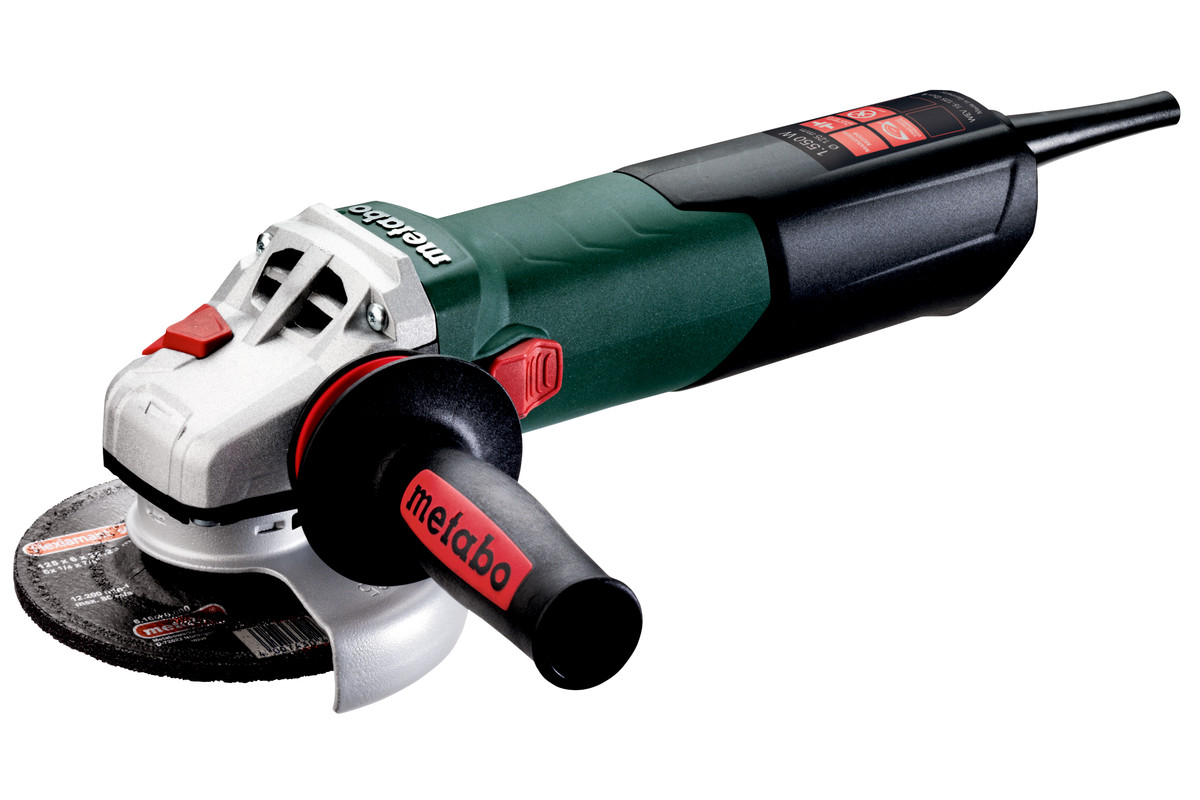

Robust, universal and economical: ergonomic angle grinder for any application
Robust motor
Twist-proof guard
Restart protection after power interruption
Robust, universal and economical: powerful angle grinder for any application
Powerful motor with good overload capacity
Twist-proof guard
Restart protection after power interruption
Characteristics
Grinding wheel: Ø125 mm
Rated input power: 850 W
Output power: 520 W
No-load speed: 11500 rpm
Revolutions at rated load: 7000 rpm
Torque: 2 Nm
Spindle thread: M 14
Weight (without power cable): 1.8 kg
Cable length: 2.5 m
Battery voltage: 18V
Grinding wheel Ø: 125mm
No-load speed: 8000rpm
Spindle thread: M14
Weight (including battery pack): 2.4kg
Vibration
Surface grinding: 4.5m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 2.5m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 83dB(A)
Sound power level (LwA): 94dB(A)
Uncertainty of measurement K: 3dB(A)
Slim design for prolonged comfort when working overhead or in areas with limited space
Metabo Quick for tool-free disc change by means of a quick-locking nut
Tool-free adjustable guard; twist-proof
Battery pack can be swivelled for better access in hard to reach places
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after power supply interruption
Detachable dust protection filter protects motor from coarse particles
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
Battery packs with capacity display for checking the charge status
Battery voltage: 18V
Grinding wheel Ø: 125mm
No-load speed: 9000rpm
Spindle thread: M14
Weight (including battery pack): 2.6kg
Vibration
Surface grinding: 5m/s²
Uncertainty of measurement K: 2.5m/s²
Grinding with sandpaper: 2.5m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 82dB(A)
Sound power level (LwA): 93dB(A)
Uncertainty of measurement K: 3dB(A)
Unique encapsulated Metabo brushless motor with optimum protection from dust provides quick work progress and the highest efficiency
Slim design for prolonged comfort when working overhead or in areas with limited space
Fast brake system for highest user safety stops the disc within a matter of seconds after switching off
Metabo Quick for tool-free disc change by means of a quick-locking nut
Tool-free adjustable guard; twist-proof
Battery pack can be swivelled for better access in hard to reach places
Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after power supply interruption
Detachable dust protection filter protects motor from coarse particles
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
Powerful and robust angle grinder with ergonomic soft handle for low-fatigue working, especially overhead
Powerful motor with good overload capacity
Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
Tool-free adjustable guard; twist-proof
Electronic soft start for smooth start-up
Restart protection after power interruption
Auto-stop carbon brushes to protect the motor
Grinding wheel Ø: 150mm
Rated input power: 1500W
Output power: 900W
No-load speed: 9600rpm
Revolutions at rated load: 9600rpm
Torque: 5Nm
Spindle thread: M14
Weight (without power cable): 2.4kg
Cable length: 4m
Vibration
Surface grinding: 9m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 5.3m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 87dB(A)
Sound power level (LwA): 98dB(A)
Uncertainty of measurement K: 3dB(A)
Highest service life for extreme applications: robust, powerful angle grinder with maximum power density in its class for quick work progress
Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque
Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System
Low-vibration side handle Metabo VibraTech (MVT)
Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
Grinding wheel: Ø125 mm
Rated input power: 1550W
Output power: 940W
No-load speed: 11000rpm
Revolutions at rated load: 11000rpm
Torque: 3.5Nm
Spindle thread: M14
Weight (without power cable): 2.5kg
Cable length: 4m
Vibration
Surface grinding: 6m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 3.6m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 93 dB(A)
Sound power level (LwA): 104dB(A)
Uncertainty of measurement K: 3dB(A)
Metabo Marathon motor with patented dust protection for long service life
Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
Tool-free adjustable guard; twist-proof
Starting current limitation prevents the actuation of the lock on start-up
Electronic overload protection and restart protection
Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health
Side handle can be mounted in three positions
Rotating main handle: high safety and better handling when cutting
Metabo safety switch prevents unintentional start
Auto-stop carbon brushes to protect the motor
LED signal indicates triggered restart protection or overheating
Grinding wheel Ø: 230mm
Rated input power: 2400W
Output power: 1600W
No-load speed: 6600rpm
Revolutions at rated load: 4600rpm
Torque: 17Nm
Spindle thread: M14
Weight (without power cable): 5.8kg
Cable length: 4m
Vibration
Surface grinding: 6.2m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 2.5m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 94dB(A)
Sound power level (LwA): 105dB(A)
Uncertainty of measurement K: 3dB(A)
Grinding wheel Ø: 180mm
Rated input power: 1900W
Output power: 1240W
No-load speed: 8200rpm
Revolutions at rated load: 8200rpm
Torque: 5Nm
Spindle thread: M14
Weight (without power cable): 2.9kg
Cable length: 4m
Vibration
Surface grinding: 4.9m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 5m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 92dB(A)
Sound power level (LwA): 103dB(A)
Uncertainty of measurement K: 3dB(A)
The most powerful one with full 1,900 Watt for industrial processing of weld seams and a cutting depth like a large angle grinder (Ø 230 mm) with only half the weight
Perfect ergonomics thanks to slim handle for maximum control and easy working overhead
Metabo Marathon-motor with new cooling and carbon brush system for twice the service life
Tacho Constamatic (TC) Full-wave Electronics: fast work progress by means of constant speed under load
M-Quick System for tool-free disc change at the touch of a button
Tool-free adjustable guard; twist-proof
Reduced vibrations for low-fatigue working thanks to Metabo VibraTech (MVT) side handle and integrated Auto-balancer
Highest degree of user safety thanks to patented, mechanical disc brake and deadman's switch: disc stop in 2 seconds after releasing even in case of a power cut
Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
Electronic soft start and restart protection
Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
Auto-stop carbon brushes to protect the motor
Low fatigue as never before: compact angle grinder with adjustable speed and smallest handle circumference in its class for perfect ergonomics
Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque
Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System
Tool-free adjustable guard; twist-proof
Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
Electronic overload protection, soft start and restart protection
Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
Auto-stop carbon brushes to protect the motor
Characteristics
Grinding wheel: Ø125 mm
Rated input power: 1100 W
Output power: 640 W
No-load speed: 2800 - 10500 rpm
Revolutions at rated load: 8800 rpm
Torque: 3 Nm
Spindle thread: M 14
Weight (without power cable): 2,1 kg
Cable length: 4 m
Grinding wheel: Ø125mm
Rated input power: 1550W
Output power: 940W
No-load speed: 2800 - 11000rpm
Revolutions at rated load: 11000rpm
Torque: 3.5Nm
Spindle thread: M14
Weight (without power cable): 2.5kg
Cable length: 4m
Vibration
Surface grinding: 6m/s²
Uncertainty of measurement K: 1.5m/s²
Grinding with sandpaper: 3.6m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 93dB(A)
Sound power level (LwA): 104dB(A)
Uncertainty of measurement K: 3dB(A)
Highest service life for extreme applications: robust, powerful angle grinder with speed control and greatest power density in its class for quick work progress
Longer service life, more power: the Metabo Marathon-motor with patented dust protection, up to 20% more overload capacity and 50% more torque
Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
Tool free, fast disc change at the touch of a button with the Metabo M-Quick-System
Tool-free adjustable guard; twist-proof
Low-vibration side handle Metabo VibraTech (MVT)
Metabo S-automatic mechanical safety clutch: minimises kick-back to the lowest level when the disc jams unexpectedly - for maximum user safety and swift progress
Electronic overload protection, soft start and restart protection
Gear housing can be unscrewed, rotated in 90° steps and remounted for left-handed operation or cutting
Auto-stop carbon brushes to protect the motor
