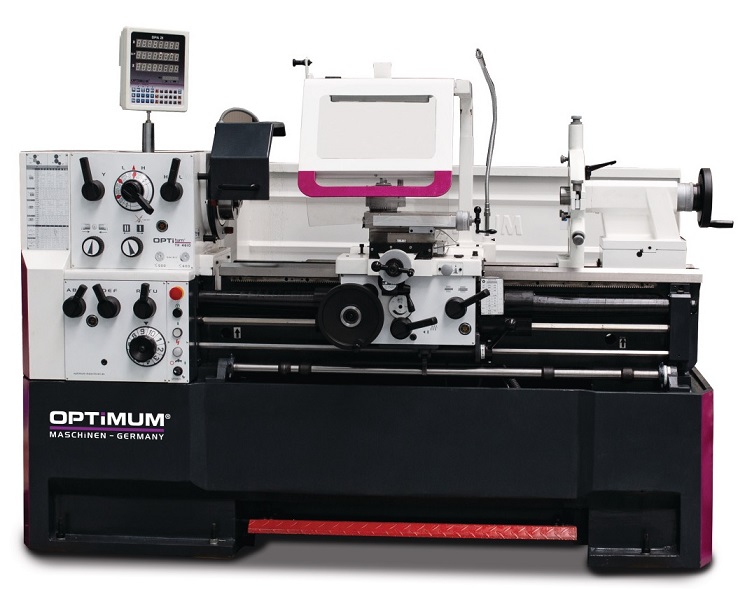

Rennibekkur TH 4615D

Rennibekkur TH 4210Hardened and ground Z-axis guideway
Precisely crafted sled
Handwheels with adjustable fine scale 0.04 / 0.02 mm
Quadruple tool holder
All guides can be adjusted by wedge strips
Waves, wheels and main spindle running in oil bath
Adjustment range upper slide ± 90 °
Guaranteed concentricity of the spindle nose better than 0.015 mm
Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
Fast-switching feed gear in a closed design, gears and shafts hardened and ground in an oil bath in precision bearings running
Handwheels decoupled and tested according to EN 23125
Two-channel right-left switch tested to EN 23125
Switch with life cycle calculation, tested according to EN ISO 13849
Right / left rotation on bed carriage via switching spindle switchable
Mechanical longitudinal feed-out shut-off of the bed carriage with four adjustable eccentrics leading spindle
Emergency stop device with foot control
Safety handwheels with release function in the X and Z axis
Adjustable scale of the threaded clock
Central lubrication in the bed slide
Tailstock for taper turning ± 10 mm adjustable
Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
Fast, easy and tool-free adjustment by means of a clamping lever
Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
Large dimensioned chip guard with integrated LED machine lamp
Quick change steel holder SWH 5-B
Steel holder 25 x 120 type D for square chisel 20 mm
Digital position indicator DPA 21 with speed display
Hardened and ground Z-axis guideway
Precisely crafted sled
Handwheels with adjustable fine scale 0.04 / 0.02 mm
Quadruple tool holder
All guides can be adjusted by wedge strips
Waves, wheels and main spindle running in oil bath
Adjustment range upper slide ± 90 °
Guaranteed concentricity of the spindle nose better than 0.015 mm
Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
Fast-switching feed gear in a closed design, gears and shafts hardened and ground in an oil bath in precision bearings running
Handwheels decoupled and tested according to EN 23125
Two-channel right-left switch tested to EN 23125
Switch with life cycle calculation, tested according to EN ISO 13849
Right / left rotation on bed carriage via switching spindle switchable
Mechanical longitudinal feed-out shut-off of the bed carriage with four adjustable eccentrics leading spindle
Emergency stop device with foot control
Safety handwheels with release function in the X and Z axis
Adjustable scale of the threaded clock
Central lubrication in the bed slide
Tailstock for taper turning ± 10 mm adjustable
Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
Fast, easy and tool-free adjustment by means of a clamping lever
Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
Large dimensioned chip guard with integrated LED machine lamp
Quick change steel holder SWH 5-B
Steel holder 25 x 120 type D for square chisel 20 mm
Digital position indicator DPA 21
