Vörunúmer: OM3402040

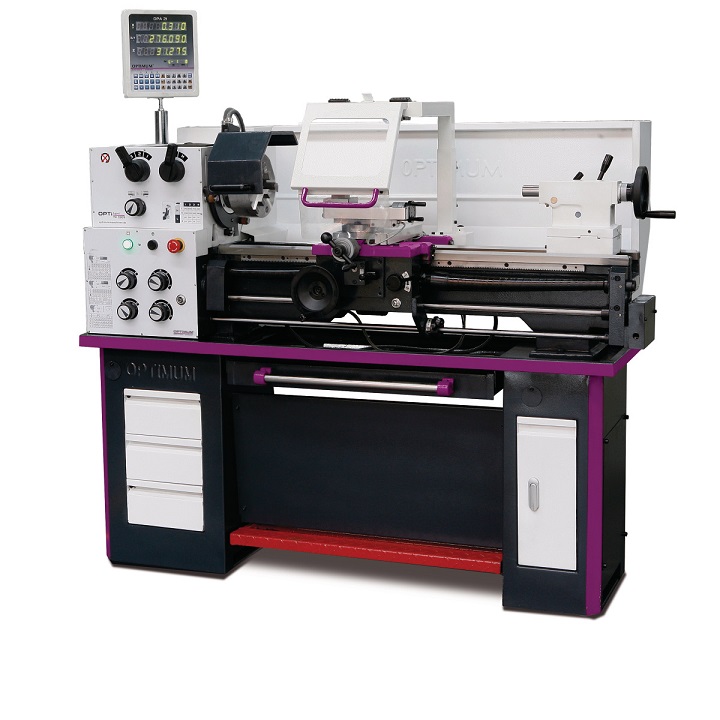

Rennibekkur OPTIturn TH 3610DHardened and ground Z-axis guideway
Spindle mount Camlock DIN ISO 702-2 No. 4
Precisely crafted sled
Handwheels with adjustable fine scale 0.04 / 0.02 mm
Quadruple tool holder
All guides can be adjusted by wedge strips
Main spindle running in oil bath
Gear wheels smooth, hardened and ground
Adjustment range upper slide ± 90 °
Guaranteed concentricity of the spindle nose better than 0.015 mm
Handwheels decoupled and tested according to EN 23125
Safety handwheels with release function in the X and Z axis
Two-channel right-left switch tested to EN 23125
DC 24 volt electrical system with two-channel safety circuit according to EN 23125
Lathe chuck protection tested according to EN 23125
Switch with life cycle calculation, tested according to EN ISO 13849
Lockable main switch
Right / left rotation on bed sled switchable
Leading spindle
Tailstock for taper turning ± 10 mm adjustable
Tailstock quill and handwheel with adjustable fine scale 0.02 mm
Fast, easy and tool-free adjustment by means of a clamping lever
Strongly ribbed prism bed, induction hardened and precision ground
Machine base with tool compartment on the right side (left side with 3 panels (no compartments))
Extractable chip tray with guide rails
Emergency stop device with foot control
LED machine lamp integrated in chip protection
Digital position indicator DPA 21
User-friendly membrane keypad, splash-proof, closed and glare-free
glass scales
