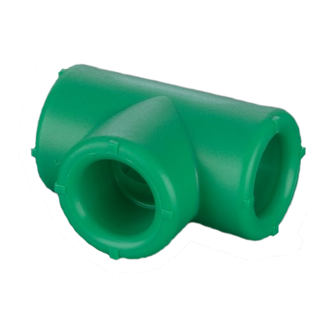

PP-R Té 25x25x25mm

Té
Stærð: 3"-1"-3"
Efnisgerð: Svart stál

Happy D.2 fótur fyrir vask frá Duravit

Stærð: 225 x 179 mm

Nippil Hólkur
Stærð: 4" x 3"
Efnisgerð: Kopar

Axor sturturör í loft
Lengd: 100 mm
Litur: Svartur - burstað króm

Dimensions and weights
Length approx.: 2270 mm
Width/depth approx.: 1500 mm
Height approx.: 2100 mm
Weight approx.: 900 kg

Drilling/milling output
Max. size milling head: 100 mm
Max. size shaft milling cutter: 25 mm
Drilling performance steel (S235JR): 30 mm
Continuous drilling performance steel (S235JR): 25 mm

Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Coolant pump(s) drive power: 40 W

Electrical connections
Total rated value: 4,5 kW

Feed speed
X axis: 24 - 720 mm/min

Horizontal spindle
Drive motor output: 1,5 kW
Reach: 0 - 185 mm
Spindle chuck: ISO 40 DIN 2080
Speed range: 60 - 1350 min¯¹
Number of gears: 9

Milling table horizontal
Table length: 1000 mm
Table width: 240 mm
T-groove size: 14 mm
T-groove number: 4
Max. load bearing capacity: 160 kg

Travel
X axis manual: 580 mm
Y axis manual: 200 mm
Z axis manual: 340 mm
X axis automatic: 500 mm

Vertical spindle
Reach: 240 - 650 mm
Spindle chuck: ISO 40 DIN 2080
Speed range: 115 - 1750 min¯¹
Number of gears: 8
Vertical spindle normal operation: 1,1 / 2,2 kW
Quill stroke: 120 mm

HSS
DIN223
5/16 x 18

Hálf-Hné
Stærð: 3/4"
Efnisgerð: Galvaniserað stál
