Vörunúmer: E028SK21012

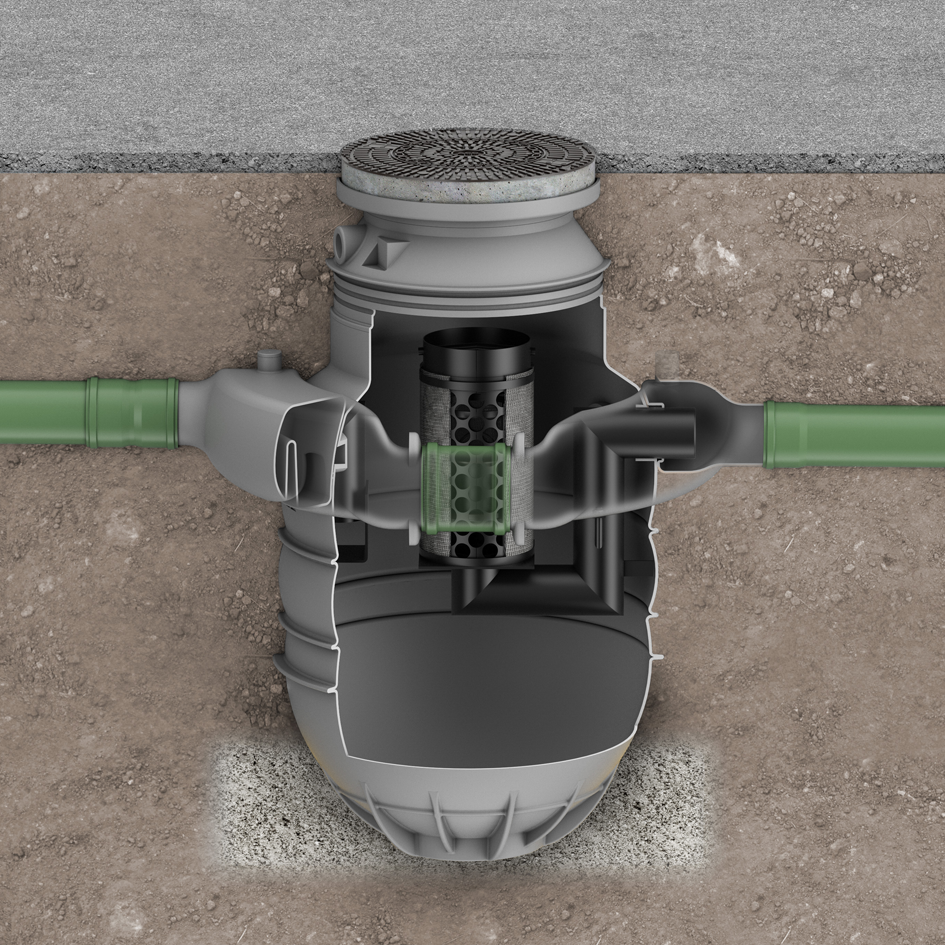

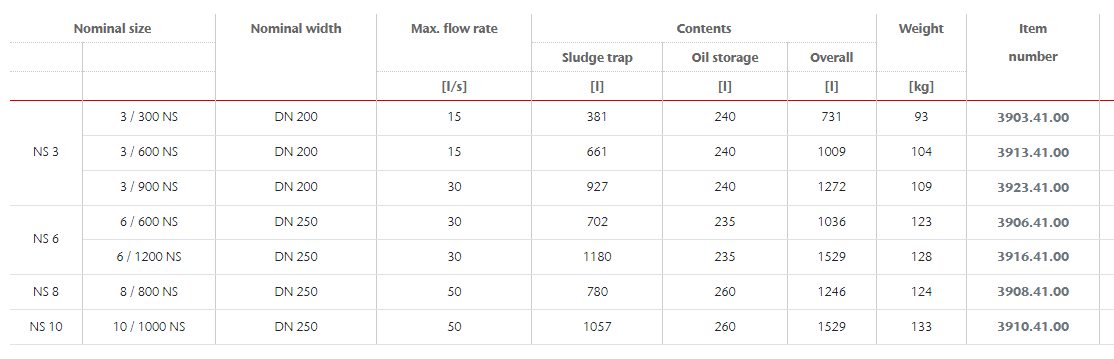

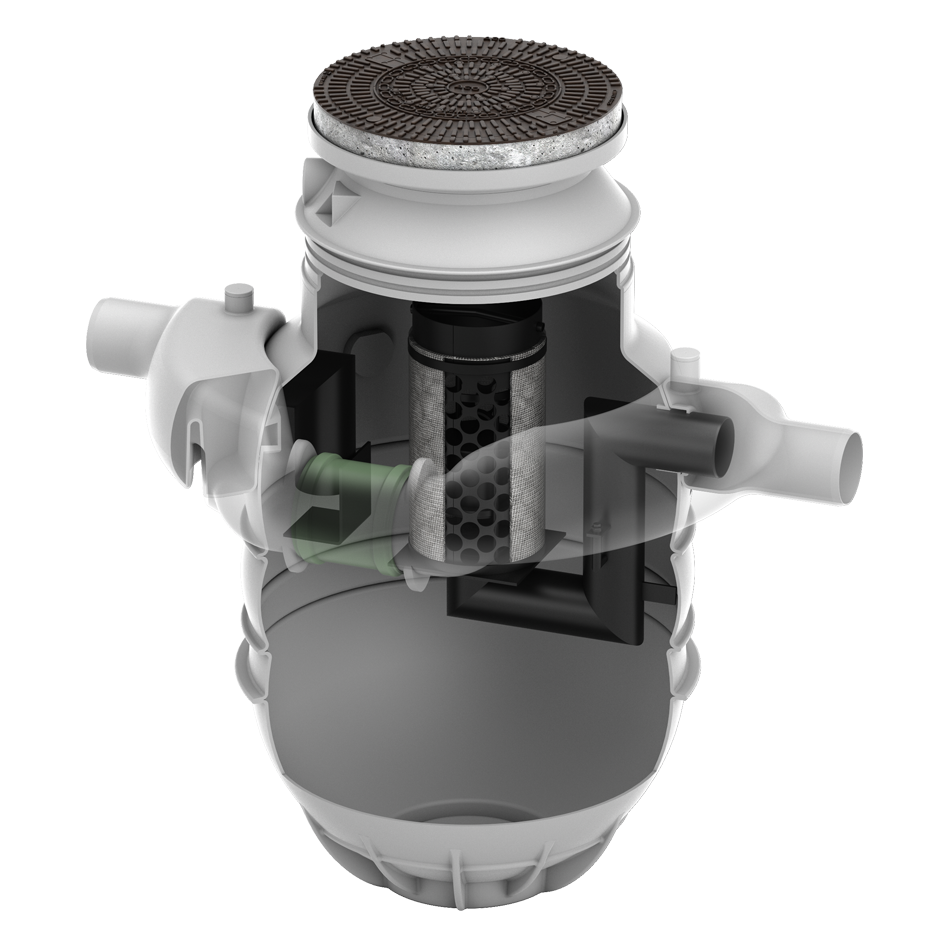

Olíuskilja með framhjáhlaupi Oleopator-P-SD NS10-50/1000 ACO

Eiginleikar

  • Shaft buoyancy-proof up to the top of the manhole cover without on-site concrete works on extension systems with load class D 400
  • Proven stability: min. 50 years according to German Standard DIN 19901
  • According to EN 858
  • Type test report
    • 7310434-01 (NS 3)
    • 7310434-02 (NS 6)
    • 7310434-03 (NS 8)
    • 7310434-03 (NS 10)

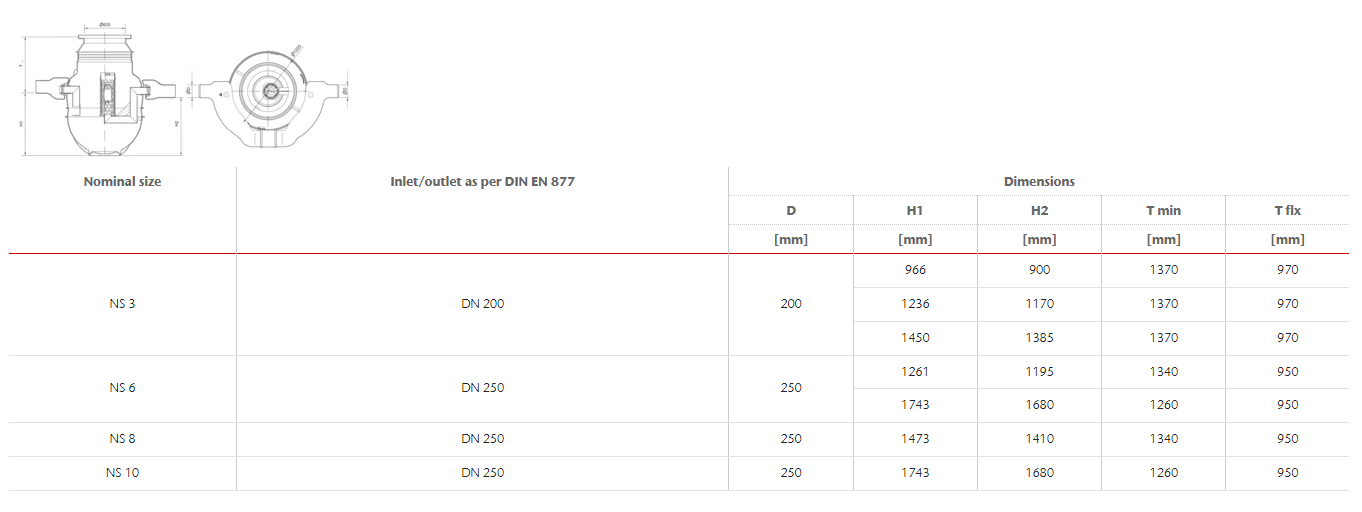

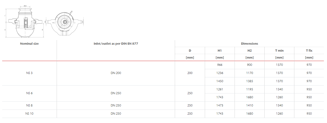

  • Inlet and outlet connection according to outside diameter D depending on Nominal Size of separator
  • Inlet and outlet parts of polyethylene
  • With integrated removable coalescing filter
  • Automatic closure device with float switch, density of float switch: 0.9 g/cm³
  • With bypass of polyethylene
  • Disposal and cleaning via cover
  • With integrally formed raising tube for varying inlet heights
  • Optionally upgradable with concrete supporting rings 60, 80 and 100 mm up to inlet invert Tmax

Loftrist LMT-MISS-DD-15 (S) 400x400mm MADEL

Loftrist frá MADEL
Gerð: LMT-MISS-DD-15 (S)
Lengd: 400 mm
Hæð: 400 mm

- LMT-MISS: Grille with end borders and fixed bars at 0º. Suitable for lengths ≤ 2 m.
- …-15: Grille LMT with fixed bars at 15º.
- …-DD: LMT grille with individually adjustable rear blades, parallels to the shortest side. Shadow-line effect with rear blades in black colour.
- (S): Clips. It requires mounting frame CSS.


Vörunúmer: 6815-400-400
