Upplýsingar um vöru

Vörunúmer: 4670-125-500

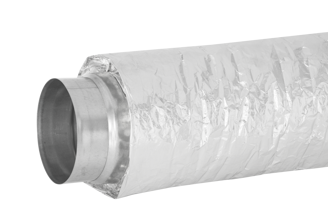

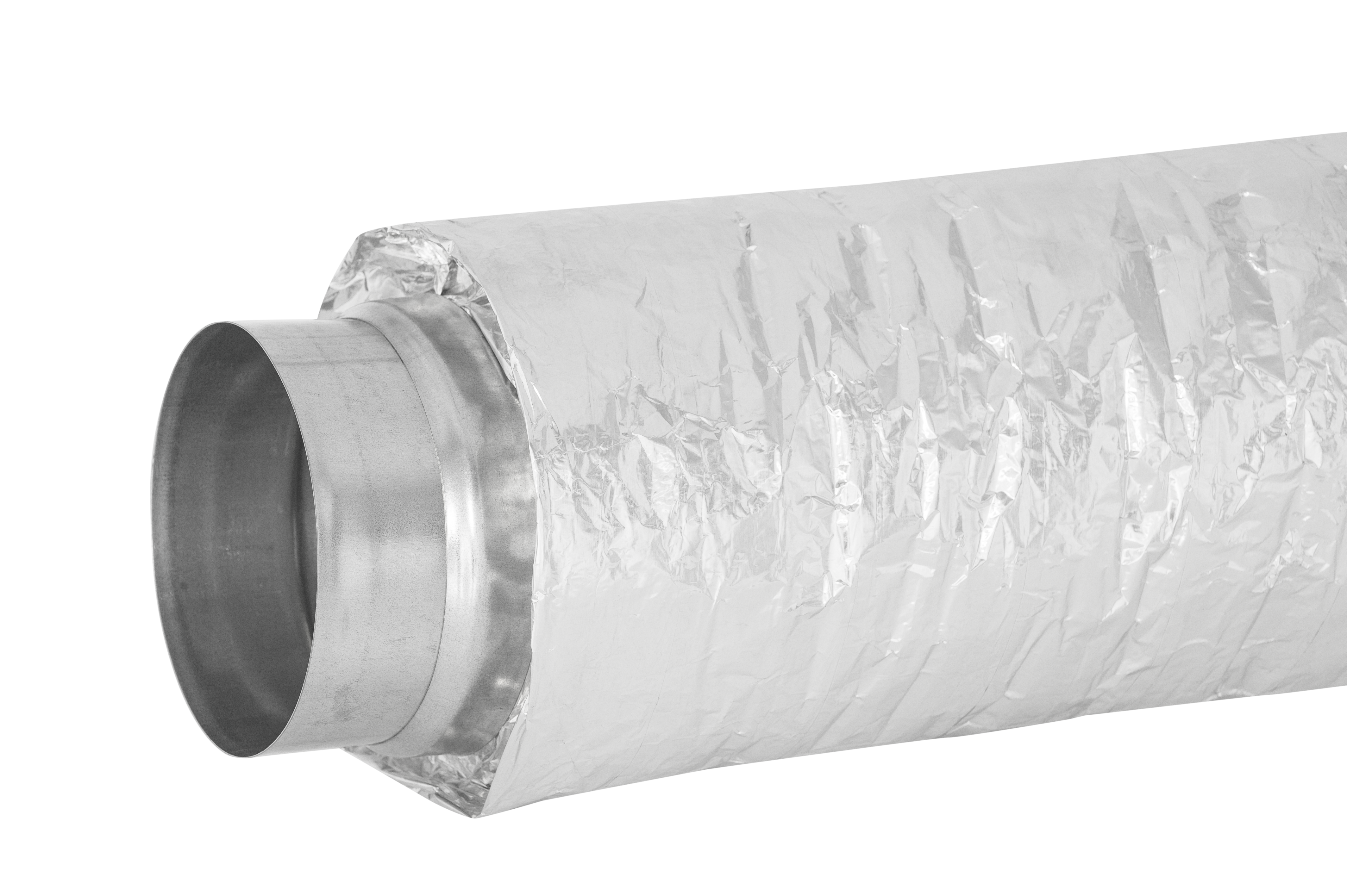

Hljóðgildrubarki frá DEC International
Gerð: Connectdec Type Akudek 3
Þvermál: 125 mm
Lengd: 500 mm

The Connectdec type Akudec is a strong, flexible and corrugated aluminum inner duct with a aluminum laminate outer jacket. The space between the inner and outer ducts is filled with 25 mm sound absorbing material. A non-woven barrier between the inner duct and the glass wool prevents the diffusion of glass wool particles.

The attenuator is by standard on both sides equipped with galvanized metal sleeves for direct mounting to the rigid duct work or equipment.

You can choose between the following connections (connections according EN1506):

2x male (type 1)
male - female (type 2)
2x female (type 3)

Application
can be combined immediately with our air valves (e.g. DAV or DVSC)
air supply systems
air conditioning systems
sound attenuator
the reduction of noise from machines
handy connector between ventilation units and air duct systems


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Hljóðgildrubarki
Gerð Connectdec
Undirgerð Akudec
Lengd 500 mm
Þvermál 125 mm
Hámarksþrýstingur max. +3000 Pa
