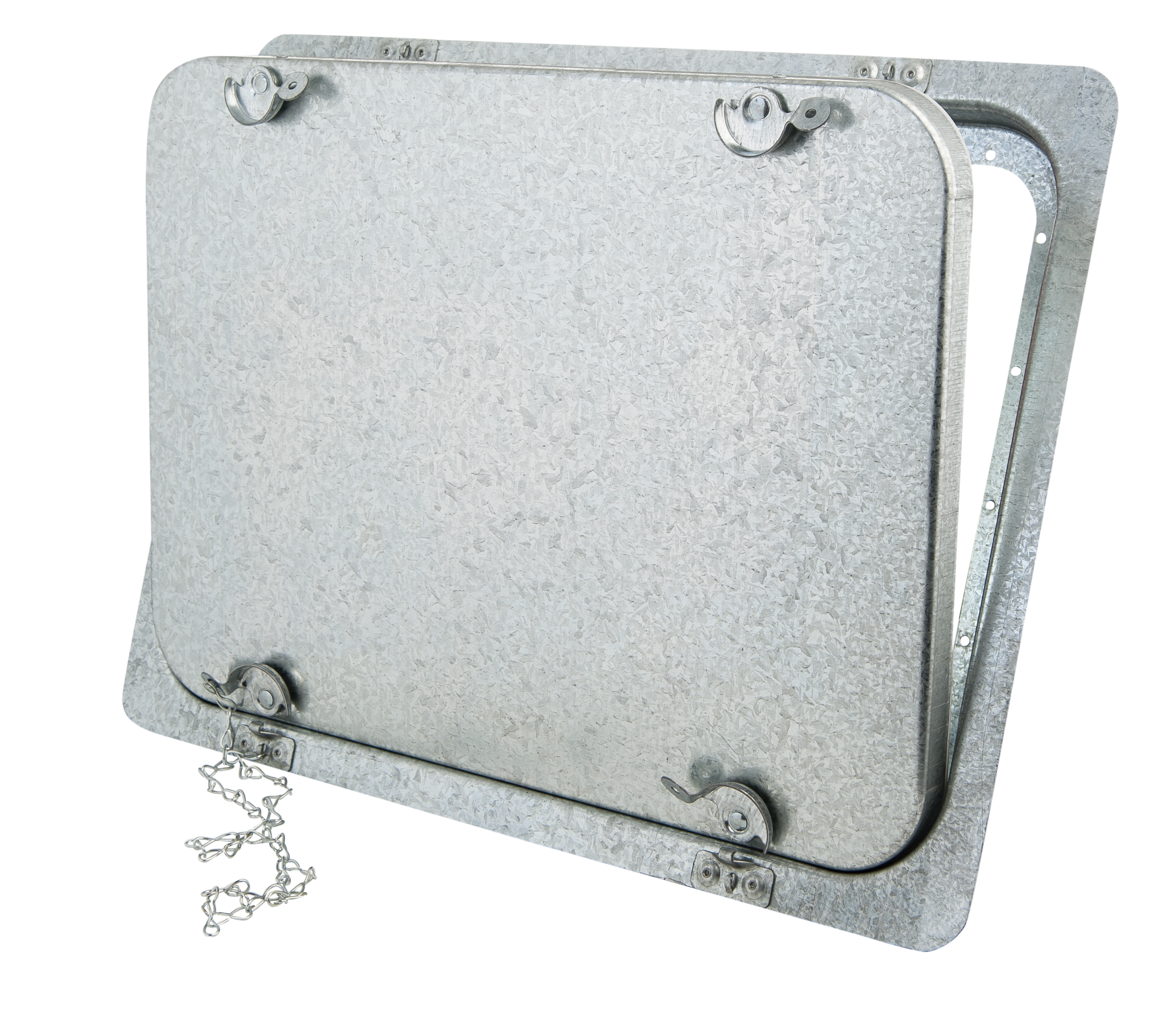

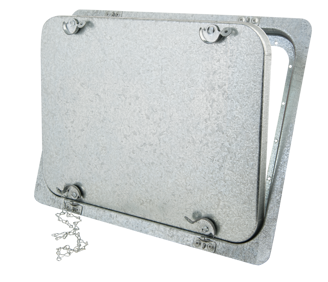

Gaumlúga IPD 375x240mm DEC

Gaumlúga frá DEC International
Gerð: IPD002
Mál: 375 x 240mm

The high quality IPD access and inspection doors are manufactured for the air conditioning industry. Used as an easy re-sealable way of gaining access to rigid air conditioning ducts and conditioner housings for equipment maintenance and cleaning purposes. Equipment such as fire dampers, smoke and volume dampers, variable air volume units (VAV), duct heater coils and filters can all be accessible for compliance with building code standards.

Construction

The IPD has been constructed from a galvanized frame with a double-walled panel, which has been fastened into the frame airtight. The frame will be fixed into the duct. The panel has been performed double-walled. In order to get a good thermic insulation a filling of a 25 mm glasswool has been added. A sealing gasket, fixed to the panel provides an air tight sealing up to 2000 Pa. Quick-acting closures see to that taking off and putting back the panel will take no more than a second.
