Lagerstaða:

Til í birgðum

Tækniupplýsingar:

Aðrar upplýsingar

Upplýsingar um vöru

Vörunúmer: 1SCA022399R6750

OTP16A3M

Öryggisrofi OTP 16A3M

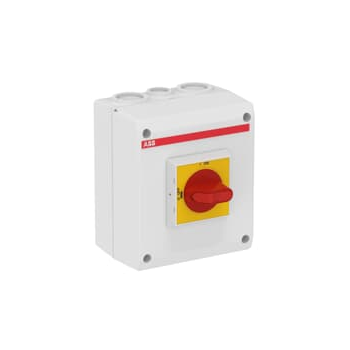

Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Öryggisrofi
Kennilína OT
Gerð OTP16A3M
Hæð 150 mm
Breidd 130 mm
Lengd 60 mm
