Upplýsingar um vöru

Vörunúmer: 1SCA022613R0650

OTL25T6M

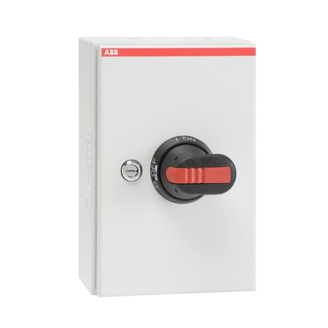

Öryggisrofi í stálhúsi 6x25A IP65




Safety switch, 6-p. 415V AC23 30A, 15kW. Mounted auxiliary contact: 1NO0NC. Steel sheet enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure of the OTL series is made of rigid alu-zinc coated steel with polyester powder coating. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water exposure and Immersion in accordance with UL746C. The cable entries are of knock out types. PE terminal included.


Eiginleikar
Nafn eiginleika Gildi eiginleika
Tegund Öryggisrofi
Kennilína OT
Gerð OTL25T6M
Hæð 250 mm
Breidd 165 mm
Dýpt 110 mm
Málstraumur 30 A
Fjöldi póla 6
